IRON ORE - PELLETS
Agglomerated iron ore fines shaped into hard, spherical balls by pelletizing and indurating.
The iron is usually ground to a very fine level and mixed with limestone or dolomite as a fluxing agent and bentonite or organic binders as a binding agent. An iron ore material in the form of round ball granules, produced from concentrate. The pellets may be fluxed or non-fluxed depending on their base-to-acid ratio (basicity).
Main Application:
- Direct use in blast furnaces or direct reduction furnaces for iron and steelmaking.
Appearance:

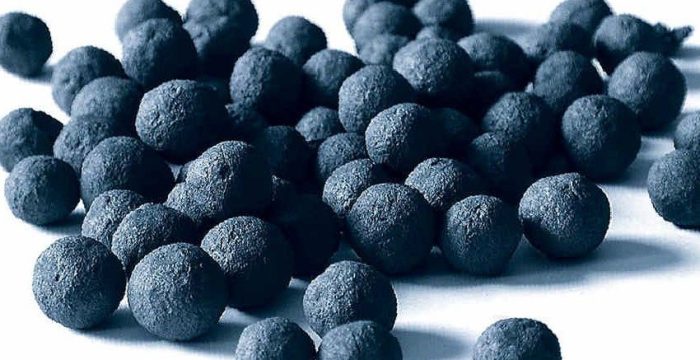

- Dark gray to black, smooth round pellets.
IRON ORE - PELLETS
| Constituent | Specifications |
|---|---|
Fe |
65% Minimum |
FeO |
0.3% Maximum |
SiO2 + Al2O3 |
5.0% Maximum |
CaO |
0.03% ±0.01 ±0.01 |
MgO |
0.06% ±0.01 ±0.01 |
Basicity |
65% Maximum |
Physical Properties: |
|
Bulk Density |
2.2T/m3 ±0.2 |
Tumbler Index |
93% Minimum |
Abrasion Index |
3% Min ± 0.5% |
Cold Crushing Strength (Avg) |
250 Kg/P Minimum |
Size Analysis: |
|
8 - 16 mm |
94% Minimum |
-5 mm |
2% Maximum |
+16 mm |
4% Maximum |
Metallurgical Properties: |
|
Porosity |
18% Minimum |
Reducibility |
62% Minimum |
Packaging:
- Bulk
